Shipping Container Conversions 30ft equipment store
CS23987
Pricing
*Call For Delivery Costs
Sample product
This container conversion was one of two special orders placed by Siemens, to be used as an on site equipment store for tools and supplies. We fitted heavy duty shelving, a counter with drawers, and metal hooks to cater for even their heaviest equipment.
CD Code CS23987
The 30ft container was fabricated from a new 40ft, using the cut and shut method, which means the corner posts are retained, for maximum strength when lifting.
We used 12mm thick ply wood to cover 100mm rock wool insulating material.
Read more about vents in shipping containers.
All wiring is surface mounted in plastic conduit.
Features
Design
Special Features
30ft with original doors
The 30ft container was fabricated from a new 40ft, using the cut and shut method, which means the corner posts are retained, for maximum strength when lifting.

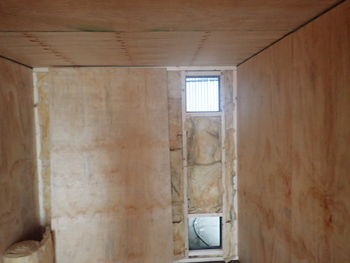

Ply lined and insulated
We used 12mm thick ply wood to cover 100mm rock wool insulating material.
2 x 500mm vents
Read more about vents in shipping containers.
Electrics
- Two 5ft strip lights
- Four double sockets
- Wall mounted heater
- External hook-up (commando plug)
- 6 way consumer unit
All wiring is surface mounted in plastic conduit.

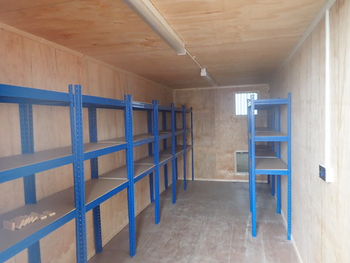

15ft of heavy duty shelving
We fitted 28 bays of 5 tier shelving, with a 265kg weight bearing capacity - perfect for tools and industrial equipment.

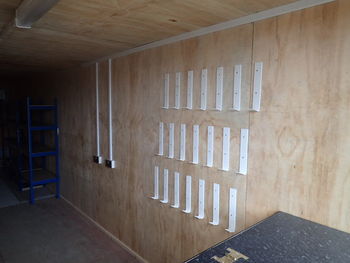

Steel hanging hooks
21 extra sturdy steel hooks were fitted for hanging tools.

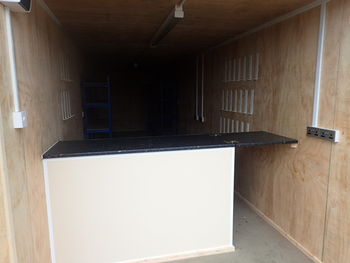

Counter and hatch
The serving counter has a lift up hatch for easy access, and contains pull out draws.

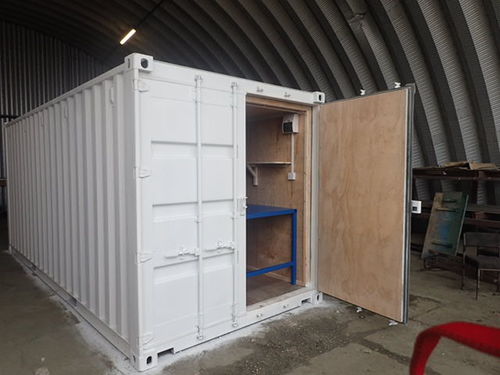

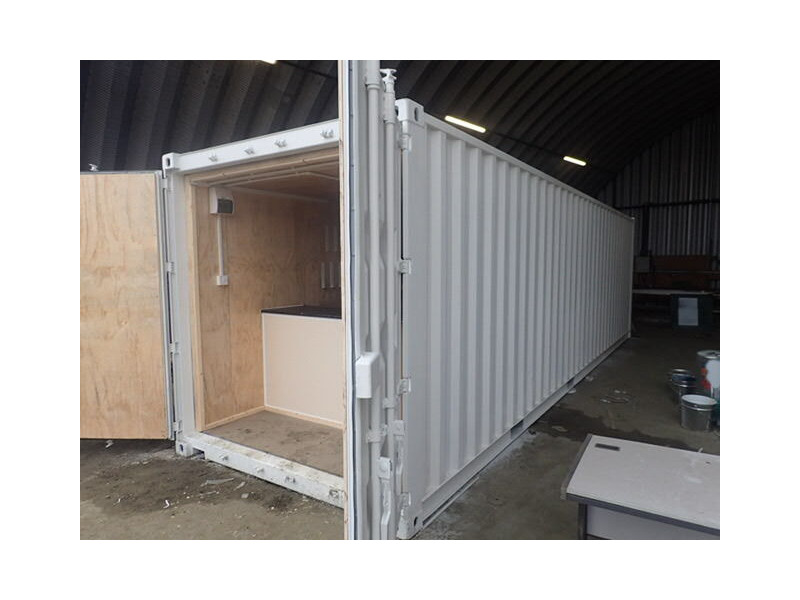

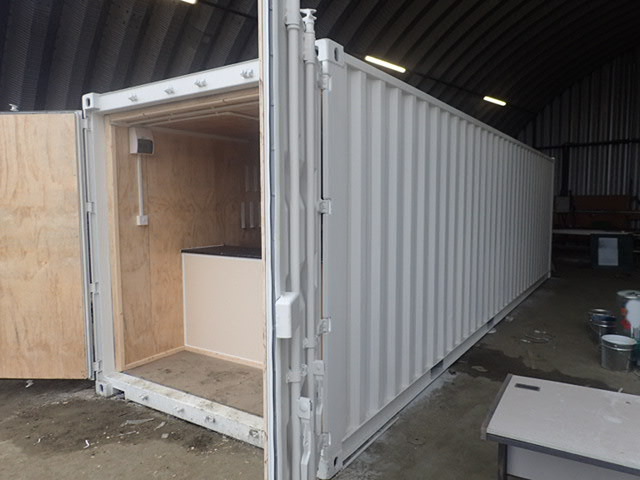

The completed container - painted in white

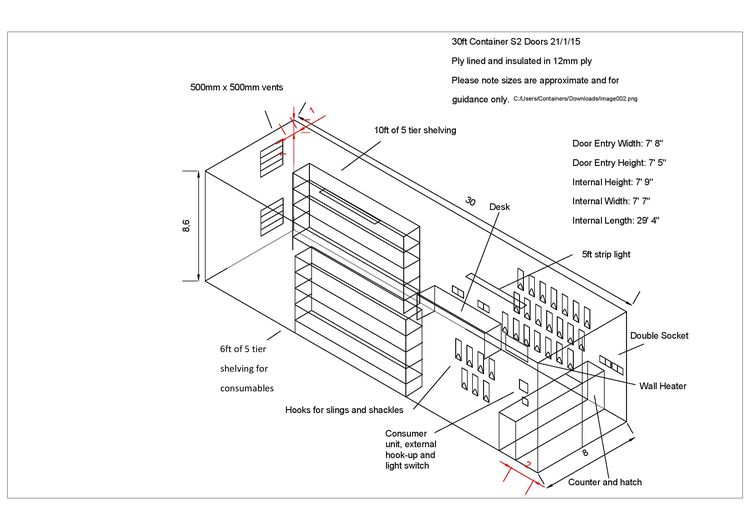

The CAD
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
