Shipping Container Conversions 33ft
CS22313
Pricing
*Call For Delivery Costs
Sample product
CD Code CS22313
Our client wanted a container measuring 33ft in length, which means using a cut and shut process on a 40ft container. When a container is cut and shut, first we cut off the corner post section from the door end of the container, and then cut the required length from the remaining body of the container. The corner post section with doors is then welded back on. This is done to keep all four corner posts in tact, as these give the container resilience during lifting or stacking.
The first stage in this process is to cut apertures into the container walls, where our client has requested two fire doors. We can then fit the steel personnel doors with fire safety features, including quick release bars and vents.
Our client needs to run cabling from underneath the container, and up through the container floor. Therefore we were asked to create a series of holes in the timber floor. After cutting through the timber and the steel bearers below, we inserted a a steel box section frame into each hole.
This was cut into the top of one of the walls, do accomodate a fan.
This is one of the most unusual modification we have been asked to make to a shipping container. Our client asked for a 750mm x 750mm lockable hatch for access into the container from underneath it!
These are brackets to mount the electrics and other fittings, onto the container wall. We were asked to weld them across the entire length of the wall.
The container is now in situ, and completely fitted out by our client for use at KidZania London
Features
Design
The project begins with a 40ft new shippping container
Our client wanted a container measuring 33ft in length, which means using a cut and shut process on a 40ft container. When a container is cut and shut, first we cut off the corner post section from the door end of the container, and then cut the required length from the remaining body of the container. The corner post section with doors is then welded back on. This is done to keep all four corner posts in tact, as these give the container resilience during lifting or stacking.
The cut and shut - making a 33ft container
Removing the corner post and door end section
Cutting the container to size and welding corner post and end door section back on
Fire doors
The first stage in this process is to cut apertures into the container walls, where our client has requested two fire doors. We can then fit the steel personnel doors with fire safety features, including quick release bars and vents.
Floor apertures
Our client needs to run cabling from underneath the container, and up through the container floor. Therefore we were asked to create a series of holes in the timber floor. After cutting through the timber and the steel bearers below, we inserted a a steel box section frame into each hole.
Circular Aperture
This was cut into the top of one of the walls, do accomodate a fan.
The trap door
This is one of the most unusual modification we have been asked to make to a shipping container. Our client asked for a 750mm x 750mm lockable hatch for access into the container from underneath it!
Welding Unistrut to the wall
These are brackets to mount the electrics and other fittings, onto the container wall. We were asked to weld them across the entire length of the wall.
Insulation and melamine lining
Our client chose to have the container insulated with 100mm rockwool, which is packed into a timber frame, fitted to the container walls. Instead of lining the frame with plywood, as is standard, we were asked to use a wipe clean, melamine alternative, bordered by plastic trim.

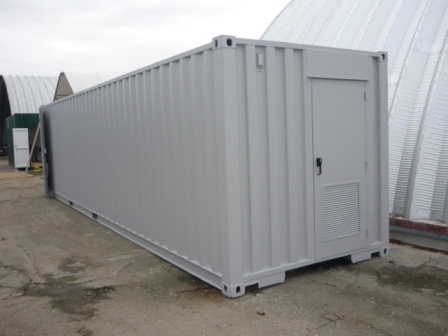

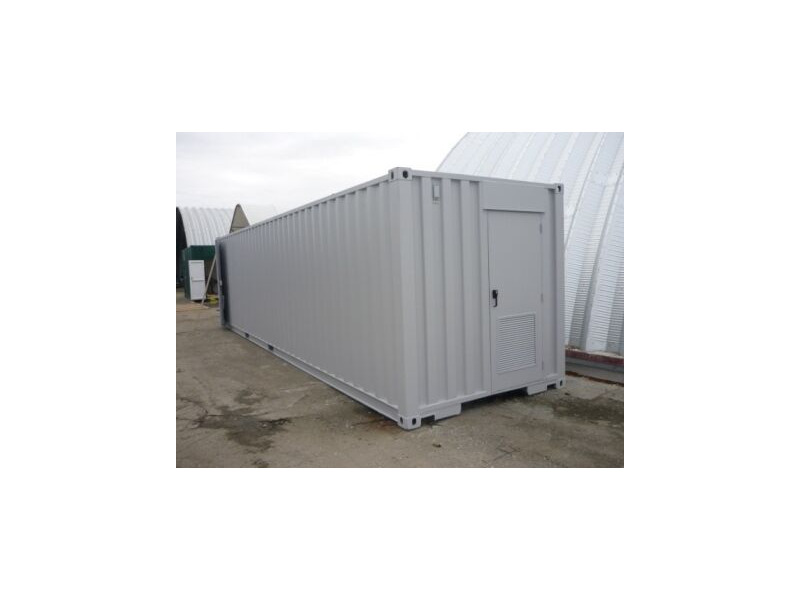

The container repainted
Colour shown, Goose Wing Grey
Update from our client

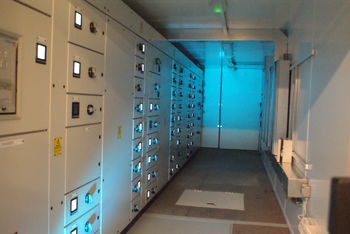

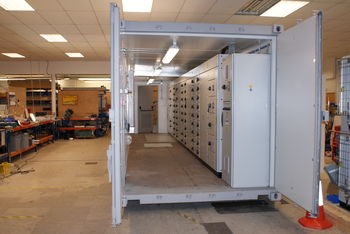

The container is now in situ, and completely fitted out by our client for use at KidZania London
The CAD
